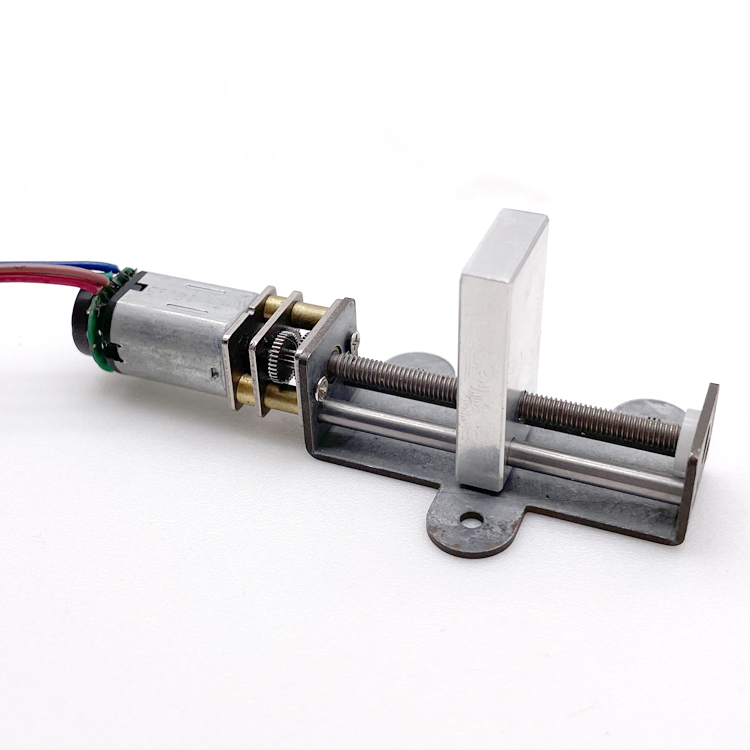

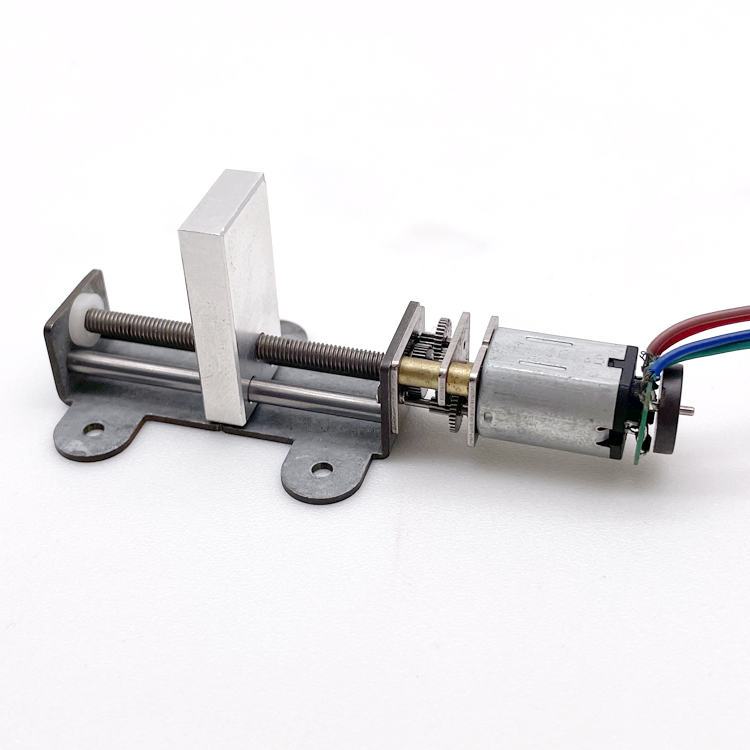

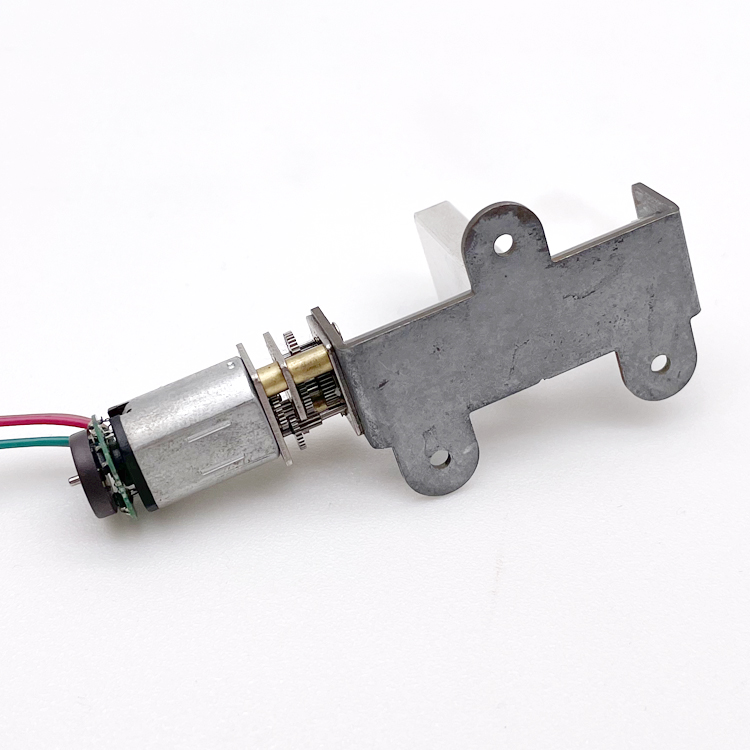

TT Motor 12v Electric Motors GM12-N20VA 1000 Ratio Spur Gear Motor for Sale

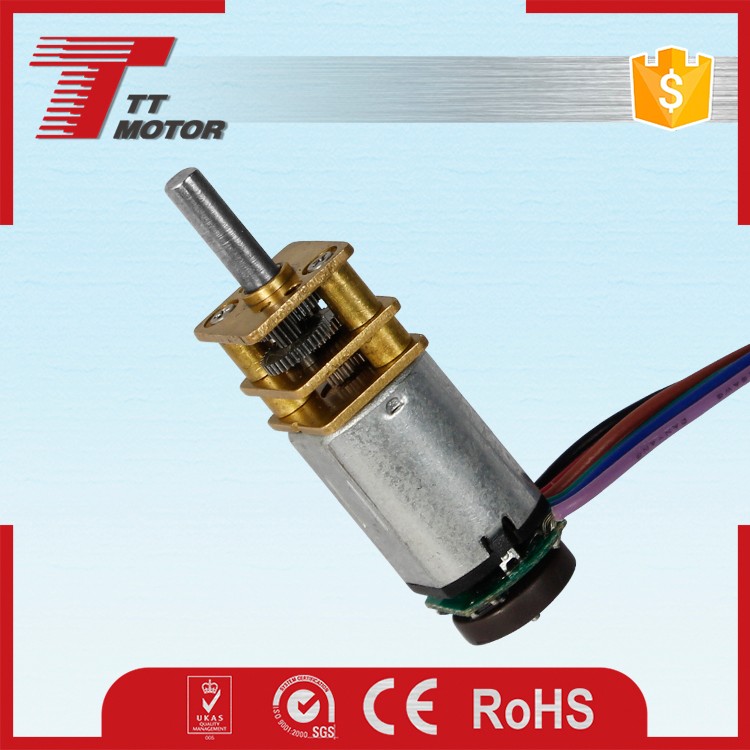

3v dc mini gear motor 12mm electric motor with encoder

Main Features

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

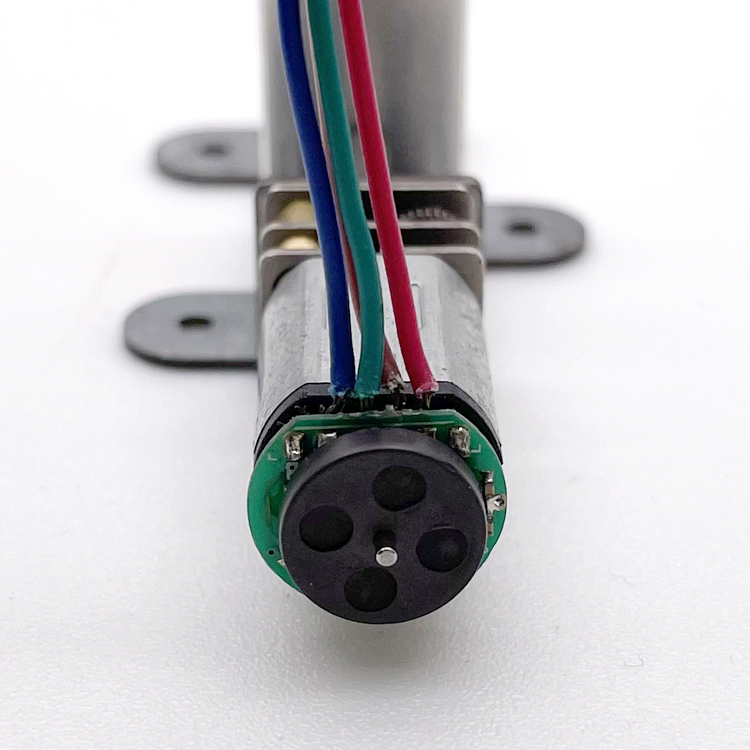

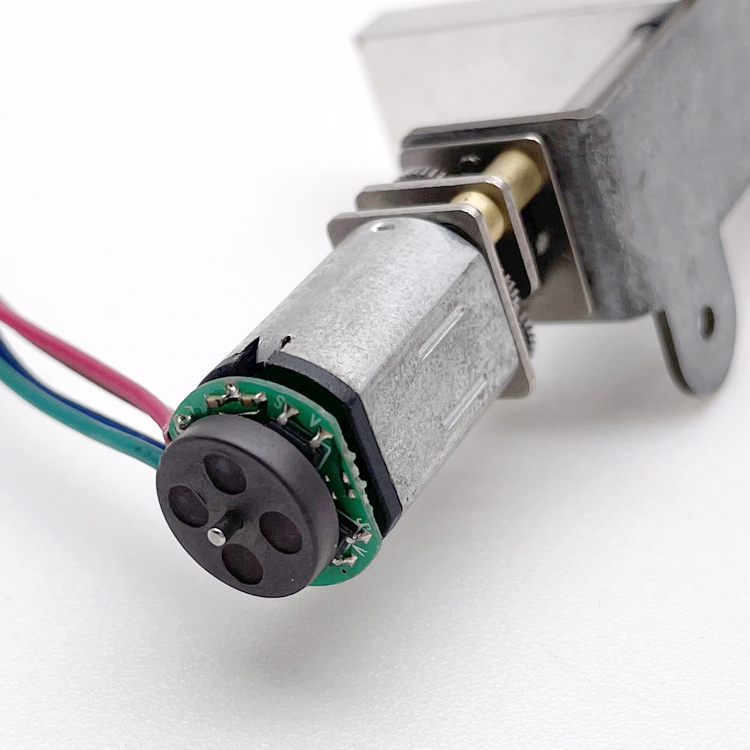

DC Gear motors can match encoder, 3ppr
Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

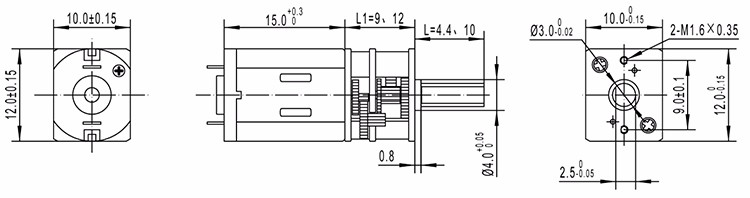

Model Specifications: GM12-N20VA

Model Name	Rated Voltage	No-Load Speed	Rated Speed	Output Power	Torque Metrics	Current Metrics
TFF-N20VA-13110	2.4V DC	14800r/min	12000r/min	0.31W	Rated: 2.5g.cm Stall: 13g/cm	No-load: 60mA Rated: 200mA Stall: 1.20A


TFF-N20VA-09220	5V DC	15000r/min	12200r/min	0.31W	Rated: 2.5g.cm Stall: 13g/cm	No-load: 30mA Rated: 120mA Stall: 0.6A


TFF-N20VA-05430	12V DC	16000r/min	12500r/min	0.35W	Rated: 3.0g.cm Stall: 13g/cm	No-load: 15mA Rated: 60mA Stall: 0.25A

GM12-N20VA-13110-EN Reduction Specs

Parameter	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed (rpm)	1450	470	285	145	96	69	58	50	38
Rated speed (rpm)	1200	400	240	120	80	57	48	40	31
Rated torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-EN Reduction Specs

Parameter	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed (rpm)	1480	490	290	150	98	70	60	50	38
Rated speed (rpm)	1220	405	245	122	81	57	48	40	31
Rated torque (kg.cm)	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque (kg.cm)	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-EN Reduction Specs

Parameter	10	30	50	100	150	210	250	298	380
Length (mm)	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed (rpm)	1550	530	310	160	110	78	60	55	43
Rated speed (rpm)	1100	400	250	125	83	60	50	42	33
Rated torque (kg.cm)	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max. tolerance torque (kg.cm)	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.

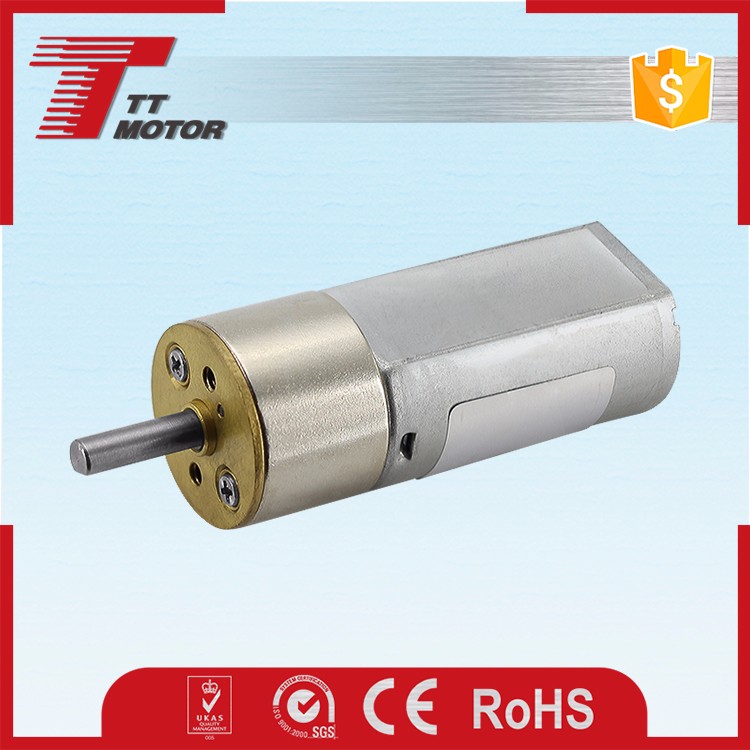

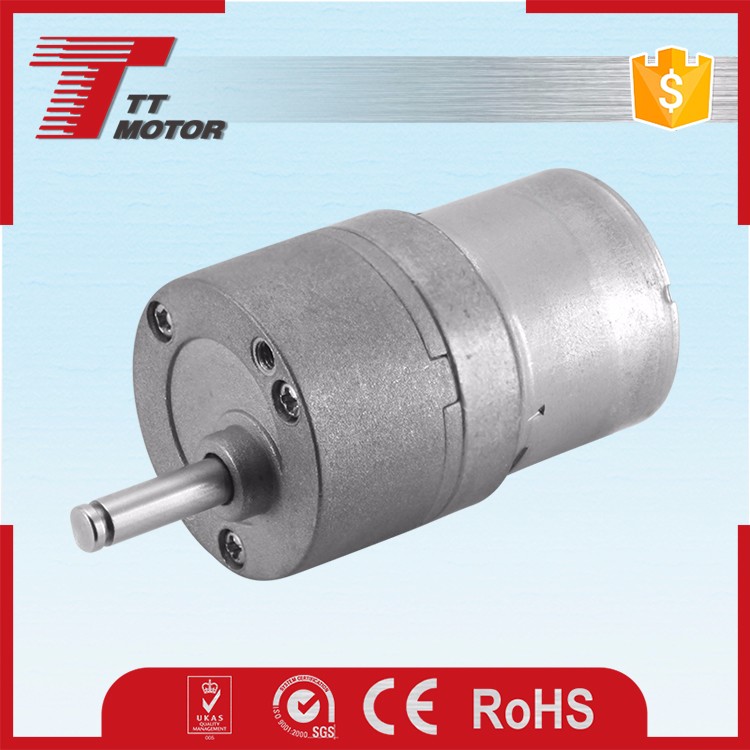

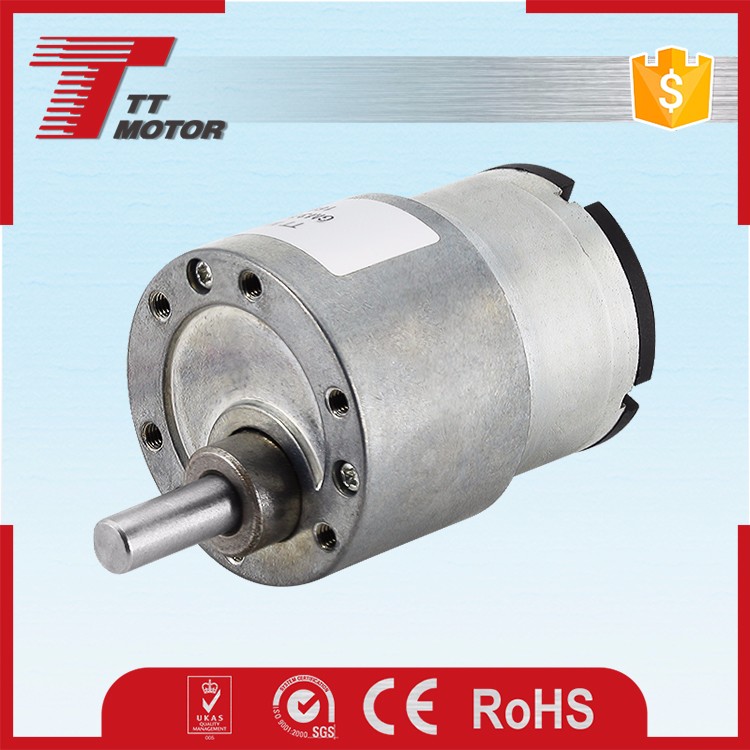

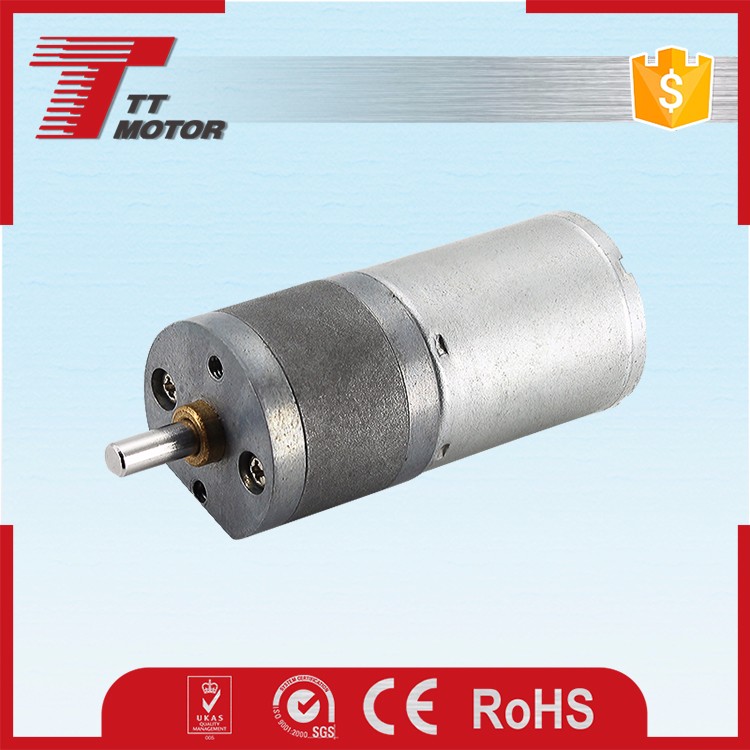

Related Products

Packing & Delivery

Packaging: Single carton packing, 500 pieces per box.

Shipping Options & Estimated Delivery Time:

• DHL: 3-5 working days

• UPS: 5-7 working days

• TNT: 5-7 working days

• FedEx: 7-9 working days

• EMS: 12-15 working days

• China Post: Depends on shipping destination country

• Sea Freight: Depends on shipping destination country

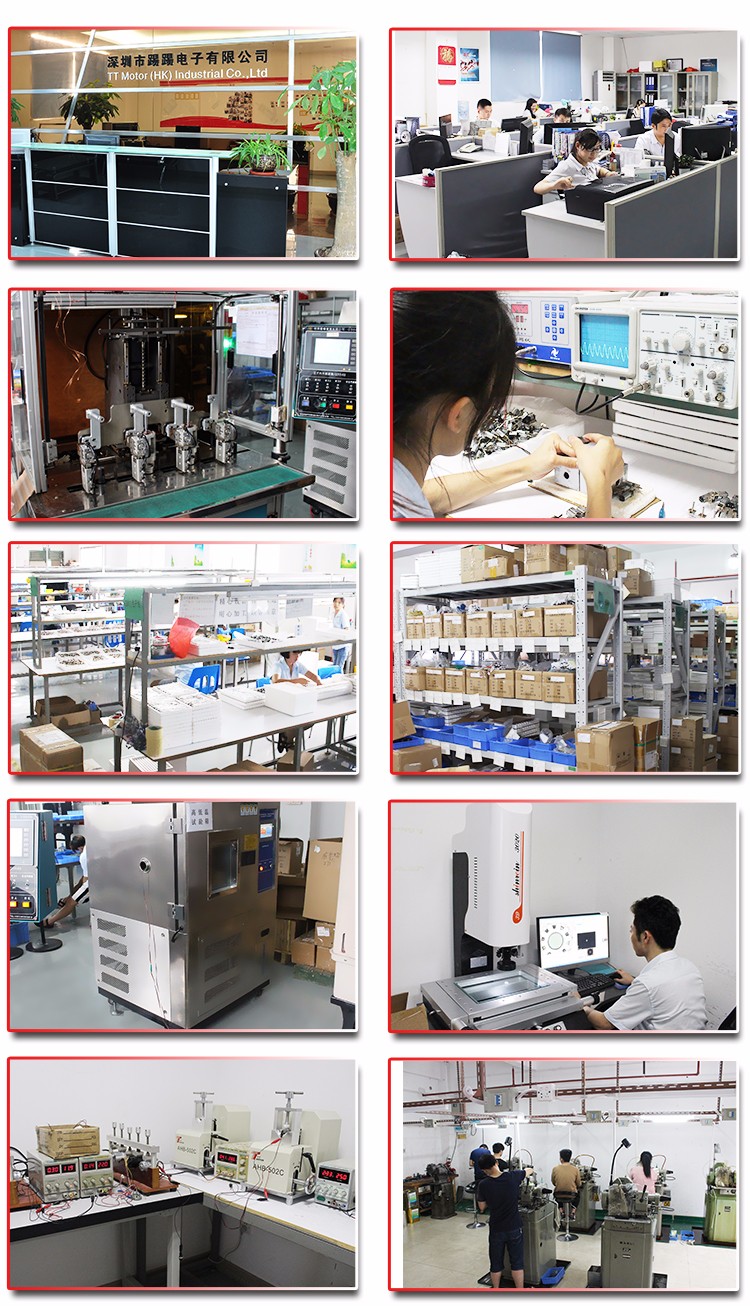

Manufacturing and Quality
