GM25-370CA 6v 12v Dc Electric Gear Motor for TV Broadcast Satellite Antenna

1 / 5

GM25-370CA 6v 12v Dc Electric Gear Motor for TV Broadcast Satellite Antenna

Send Inquiry

Product Description

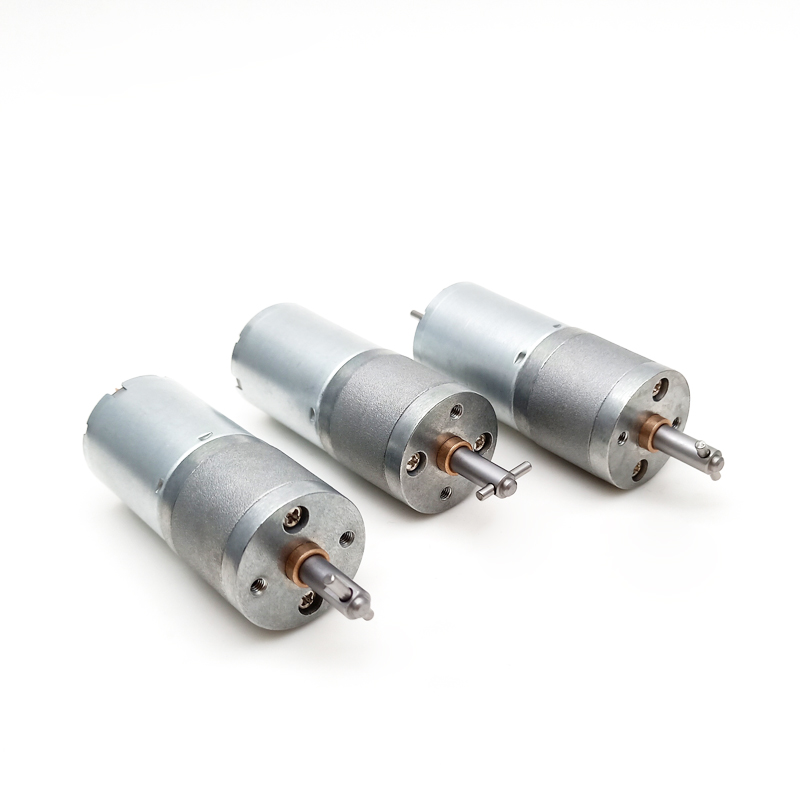

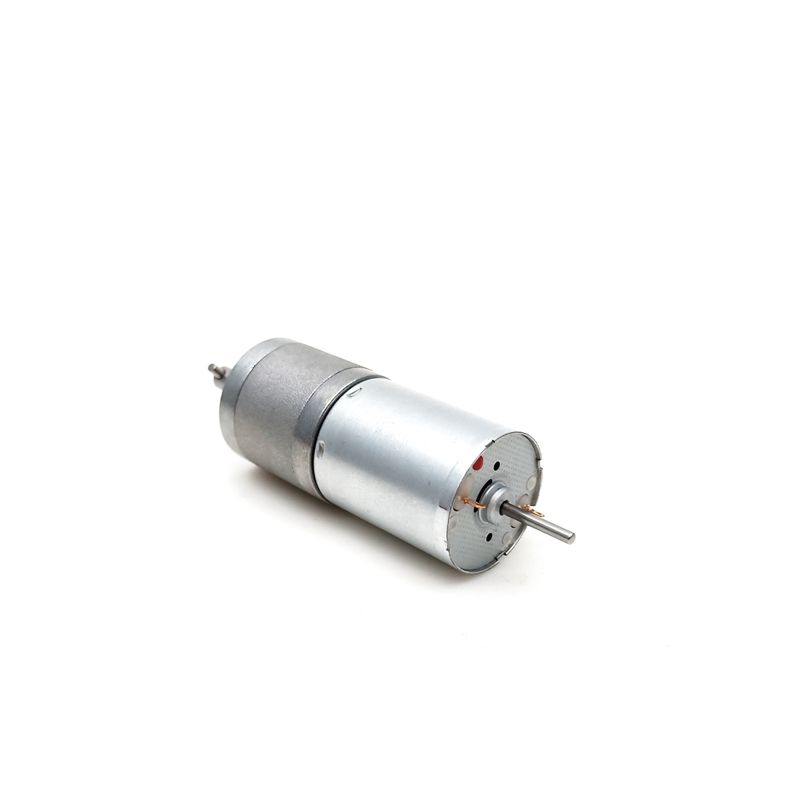

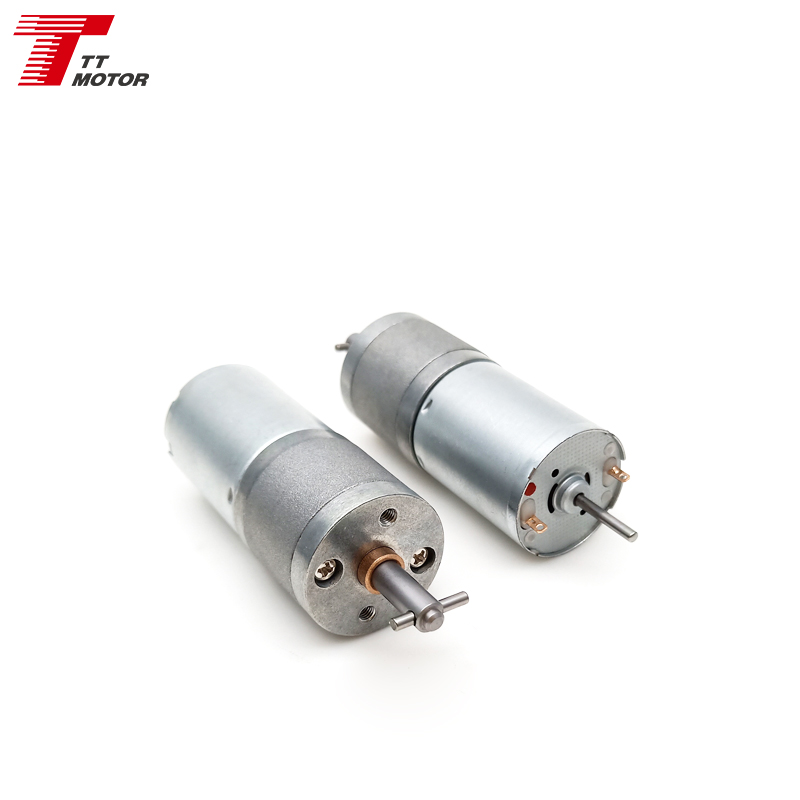

GM25-370CA 6V 12V DC Electric Gear Motor for TV Broadcast Satellite Antenna

Main Features

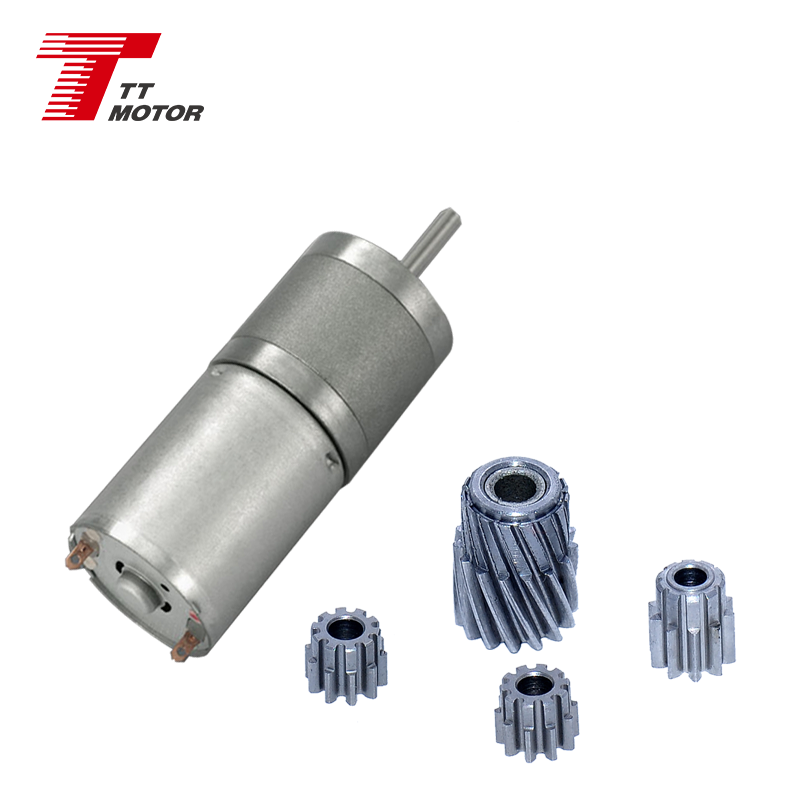

25mm gearbox plus 370 & 320 permanent magnet DC motor
Small size DC gear motor with low speed and big torque
25mm gear motor provides 0.5Nm torque and higher reliability
Suitable for small diameter, low noise, and big torque applications

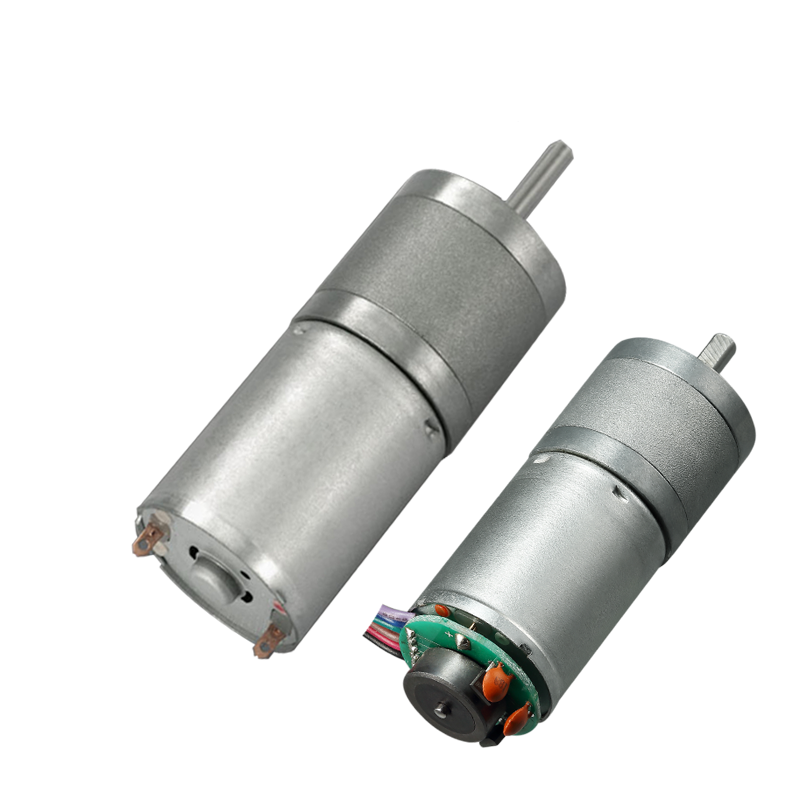

DC gear motors can match encoder, 11ppr
Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

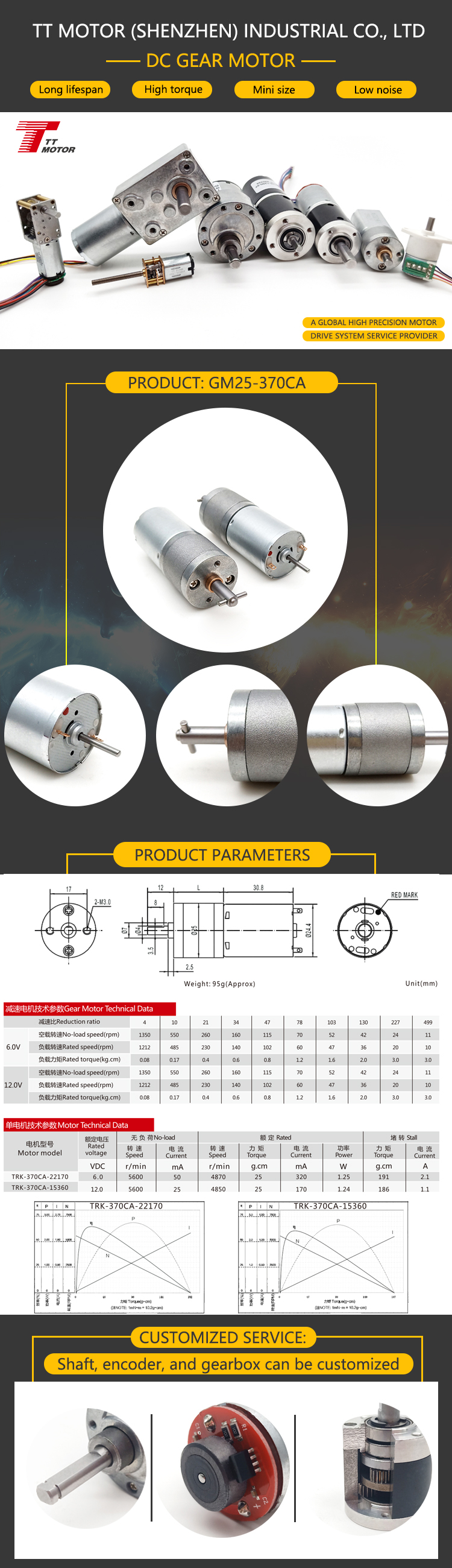

Model Specification: GM25-370CA

Model Code	Rated Voltage	Speed Metrics	Current & Torque Specs
TRK-370CA-22170	6VDC	Rated Speed: 4800 r/min No-load Speed: 5600 r/min	Output Power: 1.18W Rated Torque: 24 g.cm Stall Torque: 186 g.cm
	No-load Current: 50mA	Rated Current: 300mA	Stall Current: 2.1A
	Standard 6V Configuration Parameters
TRK-370CA-15360	12VDC	Rated Speed: 4800 r/min No-load Speed: 5600 r/min	Output Power: 1.18W Rated Torque: 24 g.cm Stall Torque: 186 g.cm
	No-load Current: 25mA	Rated Current: 160mA	Stall Current: 1.06A
	Standard 12V Configuration Parameters (Type A)
TRK-370CA-12560	12VDC	Rated Speed: 3000 r/min No-load Speed: 3700 r/min	Output Power: 0.62W Rated Torque: 20 g.cm Stall Torque: 125 g.cm
	No-load Current: 20mA	Rated Current: 90mA	Stall Current: 0.6A
	Standard 12V Configuration Parameters (Type B)

GM25-370CA-22170-xxx Performance Matrix

Reduction Ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load Speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated Speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated Torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. Momentary Tolerance Torque (kg.cm)	0.45	1.1	2.3	3.9	5.2	10	10	10	10

GM25-370CA-15360-xxx Performance Matrix

Reduction Ratio	4	10	21	34	47	78	103	130	227
Length (mm)	17	19	19	21	21	23	23	25	25
No-load Speed (rpm)	1280	510	245	150	110	68	50	42	24
Rated Speed (rpm)	1200	480	230	137	102	62	47	37	21
Rated Torque (kg.cm)	0.06	0.15	0.3	0.5	0.7	1.1	1.5	1.7	2.7
Max. Momentary Tolerance Torque (kg.cm)	0.45	1.1	2.3	3.9	5.2	10	10	10	10

GM25-370CA-12560-xxx Performance Matrix

Reduction Ratio	4	10	21	34	47	78	103	130	478
Length (mm)	17	19	19	21	21	23	23	25	27
No-load Speed (rpm)	850	340	165	100	75	48	34	27	7.5
Rated Speed (rpm)	750	300	145	86	64	38	29	23	6.3
Rated Torque (kg.cm)	0.05	0.12	0.26	0.4	0.6	0.9	1.2	1.4	2.5
Max. Momentary Tolerance Torque (kg.cm)	0.3	0.75	1.5	2.6	3.5	10	10	10	10

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001

SGS

National High-Tech Enterprise

Manufacturing Capacity

Specializing in micro motors, gear motors, and their respective parts. Products are widely used in entertainment systems, automobiles, home and industrial appliances, tools, and many other applications. The products are dependable and long-lasting, backed by years of experience, with 98% of output exported worldwide. Dedicated to providing quality, honesty, and reliability by working with global partners.

Global Partnerships & Customers

NIKE

FLEXTRONICS

STANLEY

Packing & Delivery

Standard Packing: Secure export packaging to guarantee item safety during transport.

Estimated Shipping Transit Times:

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depending on the destination country
Sea Freight: Depending on the destination port

Customer Feedback

"Excellent quality, better price, good service, and on-time delivery."

Frequently Asked Questions (FAQ)

Q: How to order?

A: Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Q: How about sample orders?

A: Samples are available. Please reach out for details. Once a sample fee is charged, rest assured it will be refunded when a formal bulk order is placed.

Q: Which shipping methods are available?

A: DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight are available. Other shipping routes can also be arranged upon request.

Q: How long is the delivery (producing) and shipping time?

A: Delivery time depends on the quantity ordered. Typically, mass production takes 15-25 working days.

Q: My package has missing products. What can I do?

A: Please contact our support team immediately, and we will cross-reference the package contents with your order database to resolve the discrepancy.

Q: How to confirm the payment?

A: We accept payment by T/T and PayPal. Other payment methods can also be negotiated. A deposit of 30-50% is required, with the outstanding balance cleared prior to shipping.
