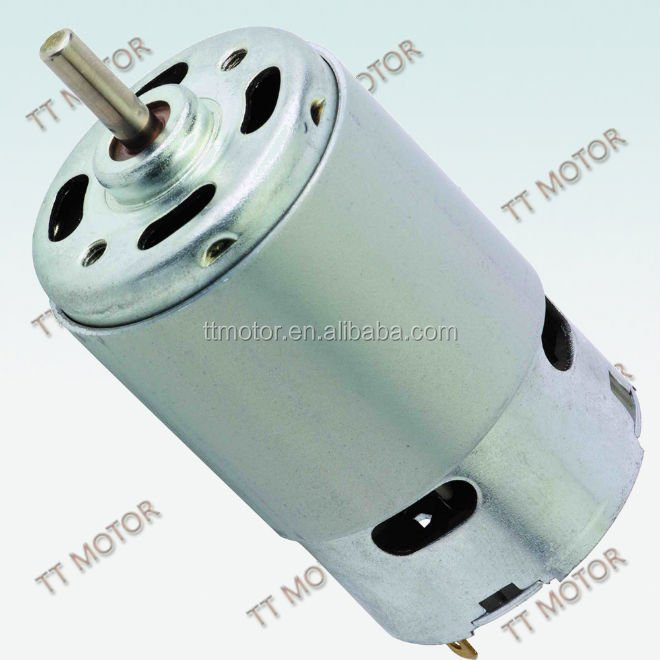

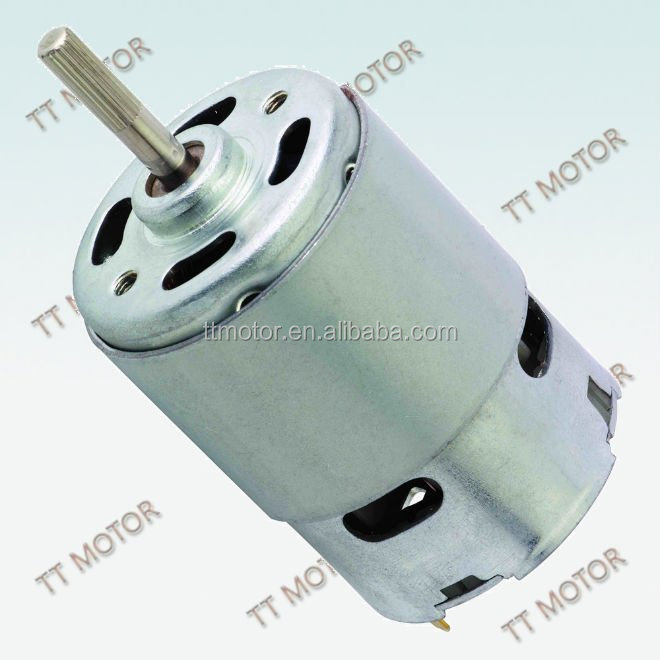

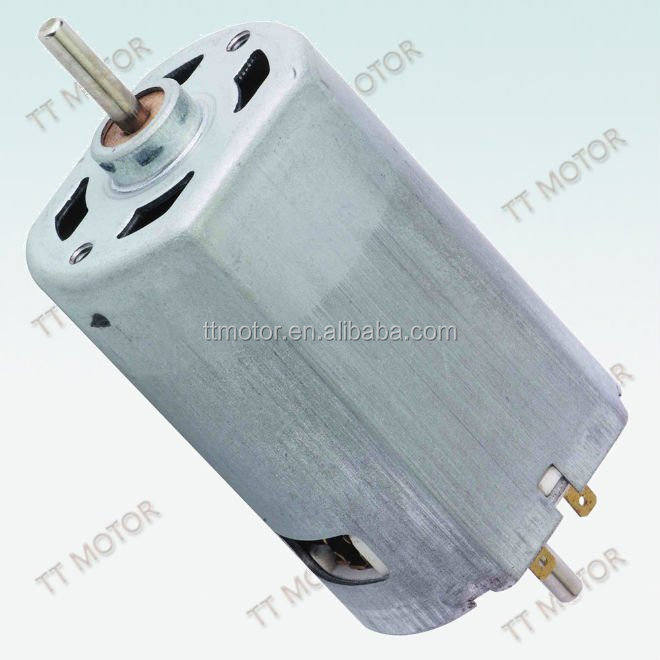

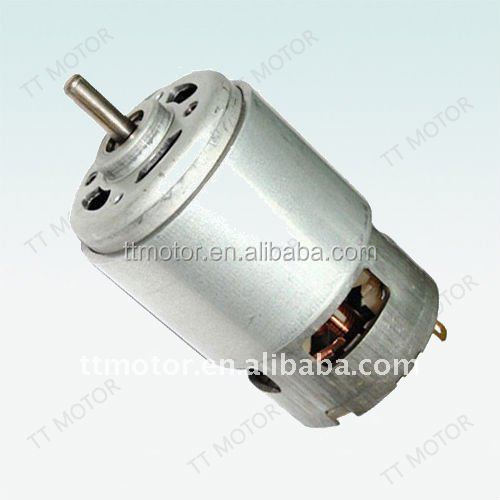

TRS-550PM or 24v Dc Motor

Send Inquiry

Product Description

24V DC Motor, TRS-550PM

Voltage 120V

Speed 18000 RPM

Torque 3512g.cm

Features Low current, low noise, spark-free, no vibration

Typical Applications Ride-on Toy, Grass trimmer, Air Compressor, Drill

MODEL		VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
		OPERATING RANGE	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
		OPERATING RANGE	V	r/min	A	r/min	A	mN.m	g.cm	w	mN.m	g.cm	A
TRS-550PM	35100	3.0-18.0	12.0	5200	0.25	4330	1.60	29.41	300	13.3	176.47	1800	8.32
TRS-550PM	6530	6.0-12.0	12.0	18000	1.30	16100	7.15	41.18	420	69.0	344.31	3512	52.0

Frequently Asked Questions

What is the nominal voltage of the TRS-550PM motor?

The nominal operating voltage of the TRS-550PM DC motor is 12.0V, with a flexible operating range starting from 3.0V up to 18.0V depending on the specific model variation (such as 35100 or 6530).

What speeds can the TRS-550PM DC motor achieve?

Under no-load conditions, the motor speed can reach up to 18,000 RPM at 12.0V nominal voltage for the 6530 model, and 5,200 RPM for the 35100 model variation.

What are the primary applications of this 24V DC motor series?

Typical applications include ride-on toys, grass trimmers, portable air compressors, electric drills, and various battery-powered household or industrial tools.

What features ensure the durability and stability of the TRS-550PM motor?

This motor design features low current draw, minimal operating noise, sparkless performance, and low vibration to guarantee smooth operation and extended product life.

What is the stall torque of the TRS-550PM (6530 model)?

The TRS-550PM (6530) has a high stall torque of 3512 g.cm (equivalent to 344.31 mN.m) at a stall current of 52.0 A, providing powerful starting performance.
