GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder

1 / 5

GM12-N20VA DC 6v Mini Metal N20 Gear Motor With Encoder

Send Inquiry

Product Description

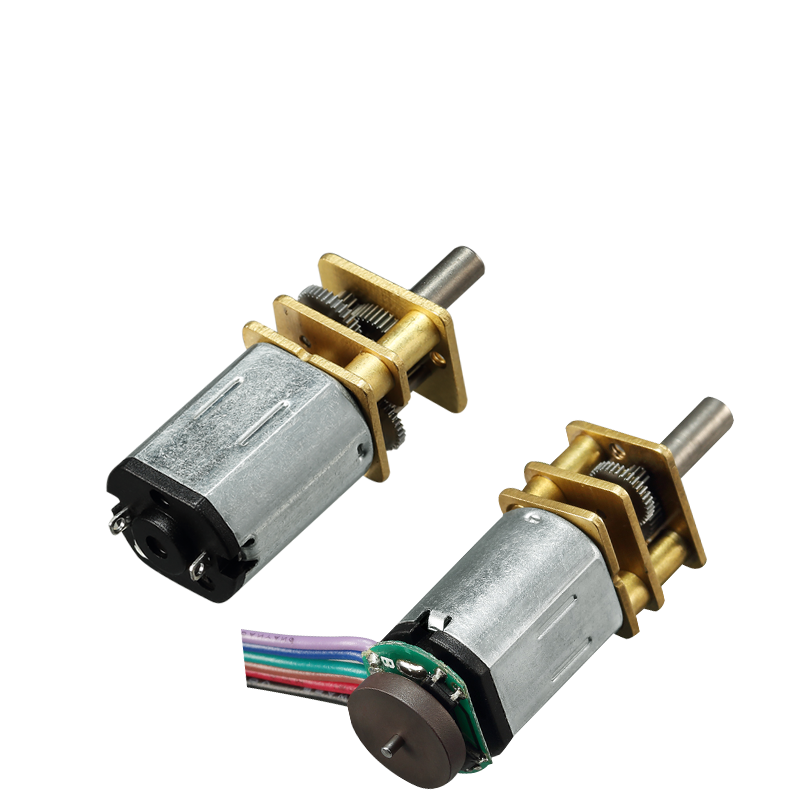

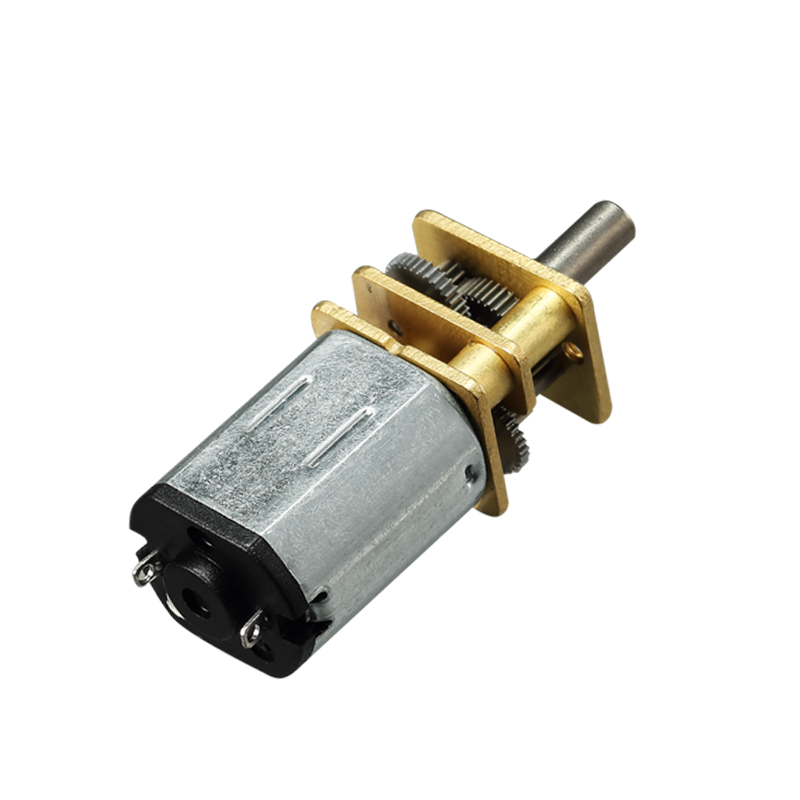

GM12-N20VA DC 6v mini metal N20 gear motor with encoder

Main Features

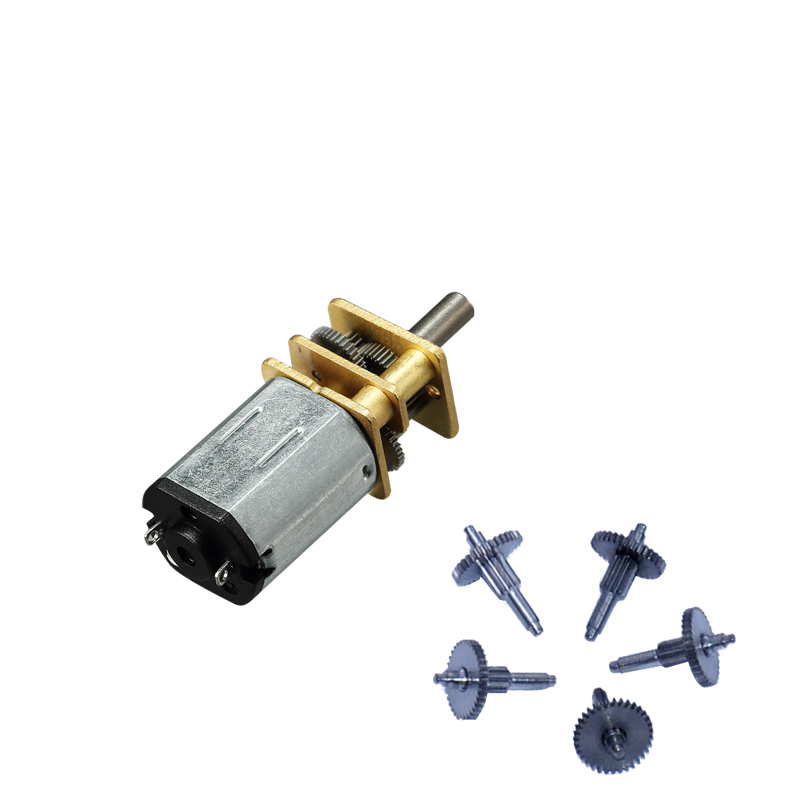

12*10 mm gearbox plus N20 & N30 permanent magnet dc motor
Small size dc gear motor with low speed and big torque
12mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application

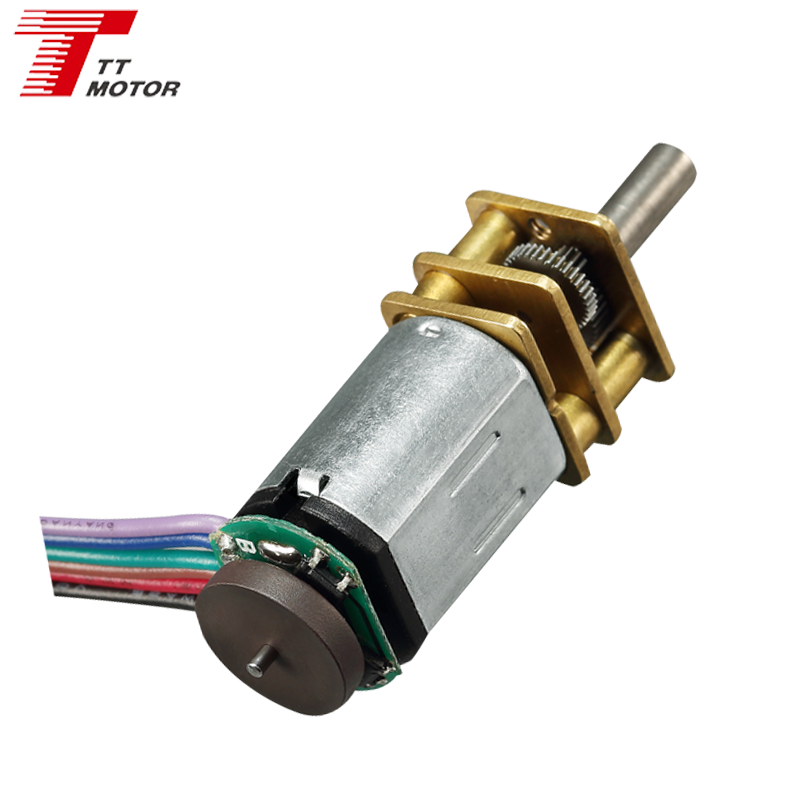

DC Gear motors can match encoder, 3ppr
Reduction ratio: 3, 5, 10, 20, 30, 50, 63, 100, 150, 210, 250, 298, 380, 1000

Performance Table (Model: Motor GM12-N20VA)

Model Details	Electrical & Power Specifications	Speed Specifications	Torque & Current Specifications
TFF-N20VA-13110 Specs
TFF-N20VA-13110	Rated voltage: 2.4V DC Output power: 0.31W	Rated speed: 12000 r/min No-load speed: 14800 r/min	Rated torque: 2.5 g.cm Stall torque: 13 g/cm No-load current: 60mA Rated current: 200mA Stall current: 1.20A
TFF-N20VA-09220 Specs
TFF-N20VA-09220	Rated voltage: 5V DC Output power: 0.31W	Rated speed: 12000 r/min No-load speed: 14800 r/min	Rated torque: 2.5 g.cm Stall torque: 13 g/cm No-load current: 30mA Rated current: 120mA Stall current: 0.52A
TFF-N20VA-05430 Specs
TFF-N20VA-05430	Rated voltage: 12V DC Output power: 0.35W	Rated speed: 12500 r/min No-load speed: 16000 r/min	Rated torque: 3.0 g.cm Stall torque: 13 g/cm No-load current: 15mA Rated current: 60mA Stall current: 0.25A

GM12-N20VA-13110-xxx Reduction Ratio Data

Parameter	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-09220-xxx Reduction Ratio Data

Parameter	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1450	470	285	145	96	69	58	50	38
Rated speed rpm	1200	400	240	120	80	57	48	40	31
Rated torque kg.cm	0.015	0.05	0.07	0.15	0.22	0.31	0.37	0.45	0.5
Max. tolerance torque kg.cm	0.08	0.23	0.4	0.8	1.1	1.5	1.6	1.9	2.5

GM12-N20VA-05430-xxx Reduction Ratio Data

Parameter	10	30	50	100	150	210	250	298	380
Length mm	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0
No-load speed rpm	1550	530	310	160	110	78	60	55	43
Rated speed rpm	1100	400	250	125	83	60	50	42	33
Rated torque kg.cm	0.02	0.05	0.08	0.18	0.27	0.37	0.45	0.5	0.5
Max. tolerance torque kg.cm	0.1	0.2	0.4	0.8	1.1	1.5	1.6	1.9	2.5

Product Applications

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications

Category	Applications List
Business Machines	Vending Machines, Printers, ATM, Copiers and Scanners
Camera and Optical	Video, Cameras, Projectors
Lawn and Garden	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Our Customers

Partnerships with leading brands: NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing processed securely for international transits.

Shipping Time Specifications

DHL: 3-5 working days

UPS: 5-7 working days

TNT: 5-7 working days

FedEx: 7-9 working days

EMS: 12-15 working days

China Post: Depends on country

Sea: Depends on country

Customer Reviews & Feedback

"Excellent quality, better price, good service, and on time delivery."

Frequently Asked Questions (FAQ)

Q: How to order?

A: Send us an inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation.

Q: How about Sample order?

A: Samples are available for you. Please contact us for details. Once we charge you the sample fee, please rest assured that it would be refunded when you place the formal order.

Q: Which shipping way is available?

A: DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are all available. Other shipping options can also be arranged upon request.

Q: How long is the delivery (producing) and shipping time?

A: Delivery time depends on the quantity ordered. Usually, mass production takes 15-25 working days.

Q: My package has missing products. What can I do?

A: Please contact our support team and we will verify the order contents with our packaging logs. We apologize for any inconvenience.

Q: How to confirm the payment?

A: We accept payment by T/T and PayPal. Other payment methods can also be accepted upon negotiation. A deposit of 30-50% is required, with the balance to be paid before shipping.
