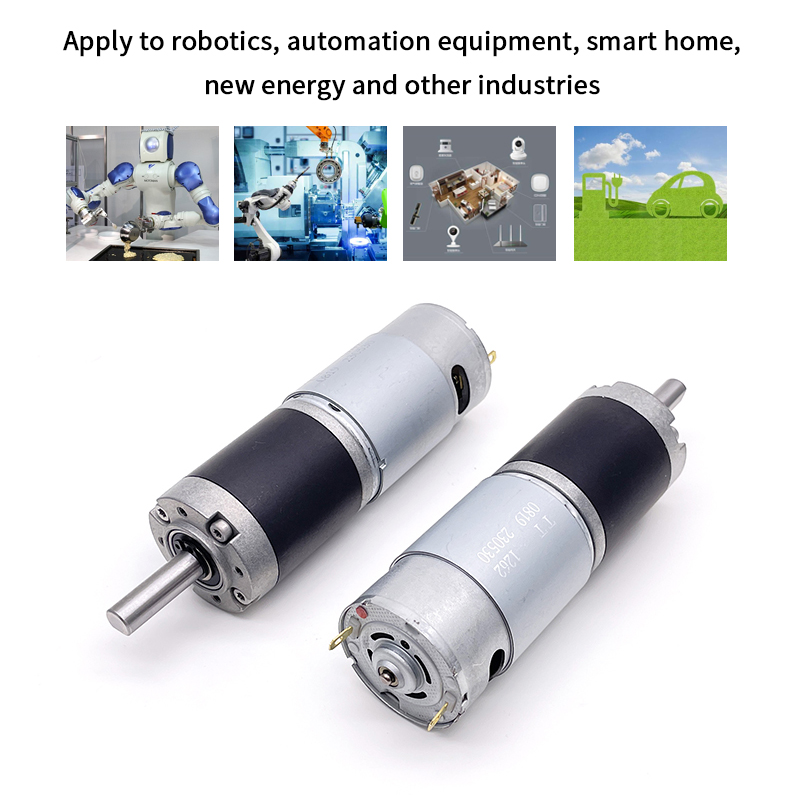

GMP36-555PM-EN 12 Volt 24 Volt Electric Dc Geared Motor With Encoder

1 / 5

GMP36-555PM-EN 12 Volt 24 Volt Electric Dc Geared Motor With Encoder

Send Inquiry

Product Description

GMP36-555PM-EN 12 Volt & 24 Volt Electric DC Geared Motor with Encoder

Main Features

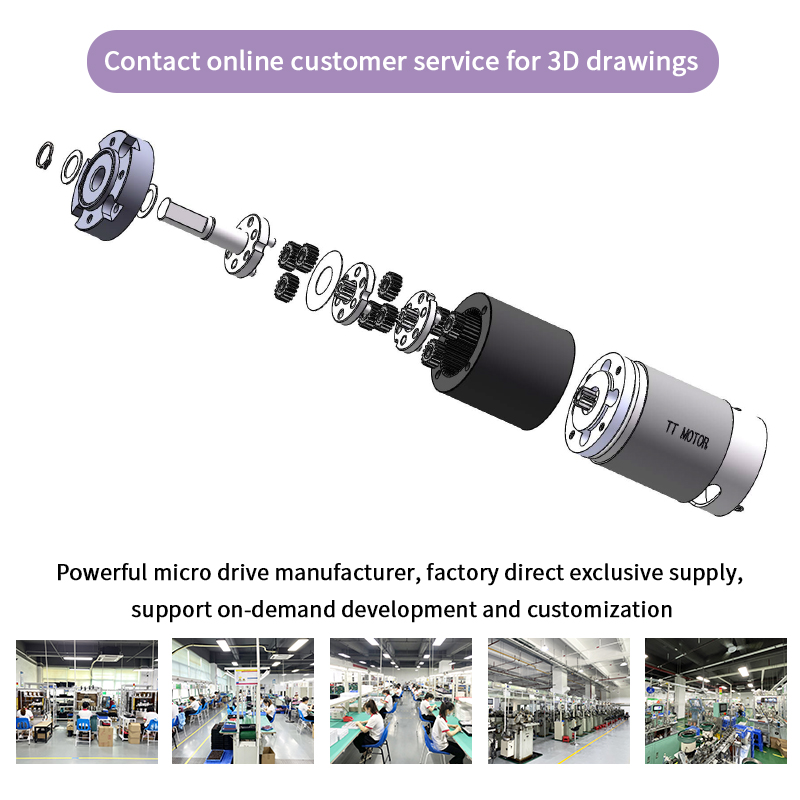

36mm Planetary reducer plus 3530, 5 series of carbon brush motor and TEC3650 & 3640 brushless motor

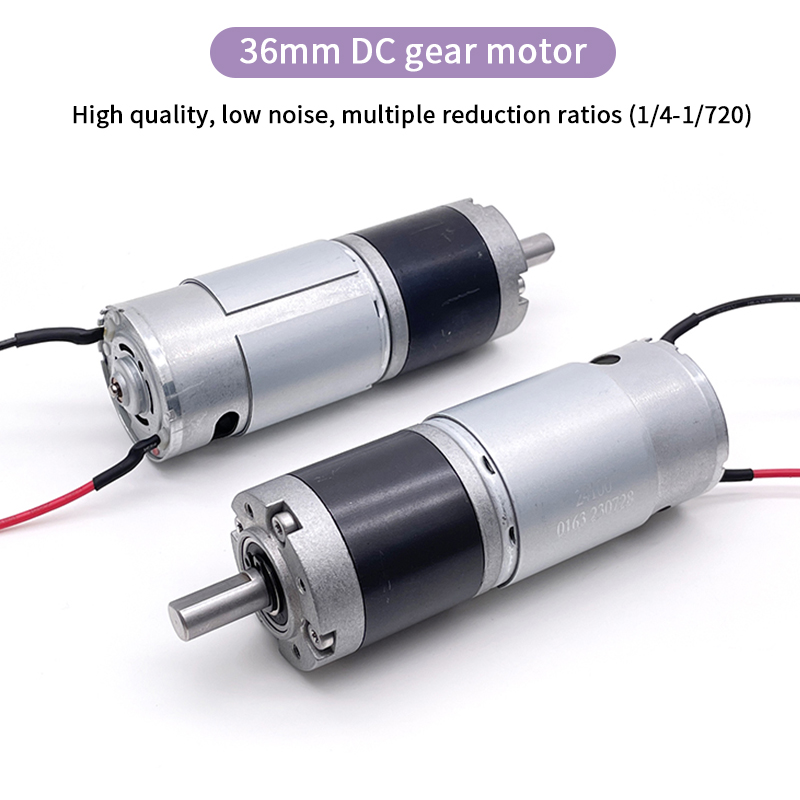

Small size DC gear motor with low speed and big torque
36mm gear motor provides 3.0Nm torque and higher reliability
Suitable for small diameter, low noise, and big torque applications

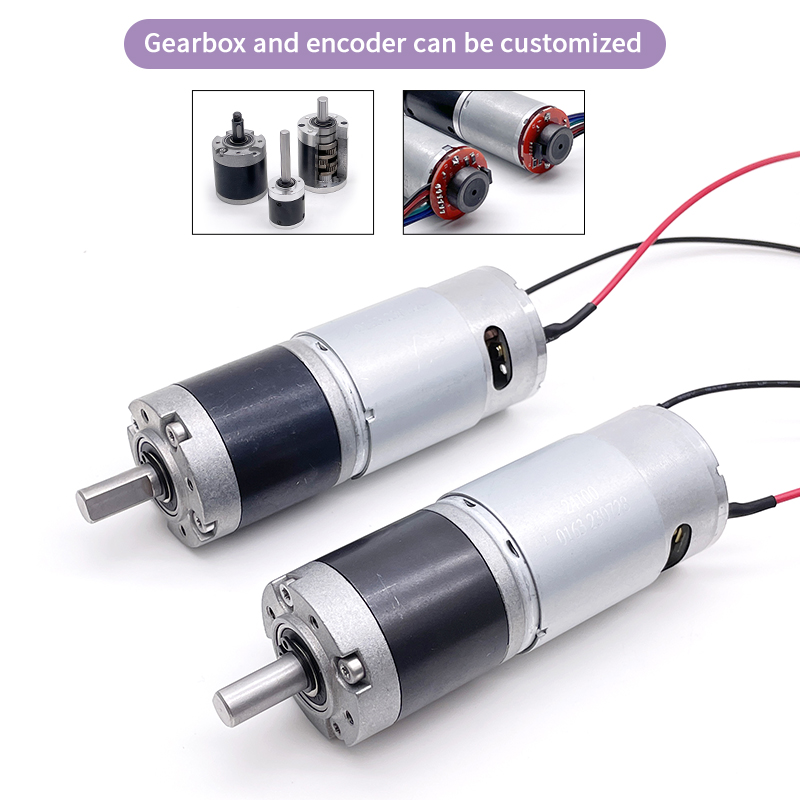

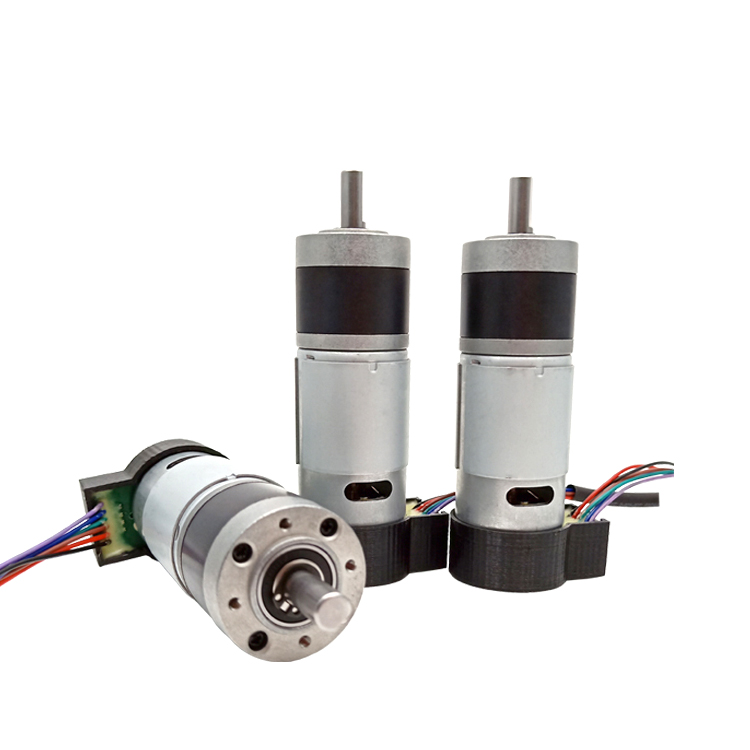

DC Gear motors can match encoder, 11pr
Reduction ratio: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720

Model Specifications

Model	Electrical & Speed Specs	Torque & Output Specs
GMP36-555PM-1233	Rated voltage: 12VDC No-load speed: 3300r/min	Output power: 5.7W Rated torque: 200g.cm
	No-load current: 200mA	Stall torque: 1150g.cm
	Rated speed: 2800r/min	Rated current: 1000mA / Stall current: 5.5A
GMP36-555PM-1260	Rated voltage: 12VDC No-load speed: 6000r/min	Output power: 16W Rated torque: 290g.cm
	No-load current: 300mA	Stall torque: 2200g.cm
	Rated speed: 5250r/min	Rated current: 2400mA / Stall current: 15.0A
GMP36-555PM-2440	Rated voltage: 24VDC No-load speed: 2400r/min	Output power: 6.4W Rated torque: 200g.cm
	No-load current: 150mA	Stall torque: 1000g.cm
	Rated speed: 3150r/min	Rated current: 700mA / Stall current: 2.7A

GMP36-555PM-1233-xxx Performance Parameters

Reduction Ratio	4	19	51	100	139	189	264	369	516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load Speed (rpm)	750	160	60	32	23	17	12	9	6
Rated Speed (rpm)	700	150	55	28	20	15	11	8	5.5
Rated Torque (kg.cm)	0.64	2.7	6	12	15	21	26	30	30
Max Tolerance Torque (kg.cm)	3.7	15	35	70	70	70	70	70	70

GMP36-555PM-1260-xxx Performance Parameters

Reduction Ratio	4	19	51	100	139	189	264	369	516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load Speed (rpm)	1400	300	110	55	42	32	23	16	11.5
Rated Speed (rpm)	1300	275	100	50	38	28	20	15	10.5
Rated Torque (kg.cm)	0.9	3.8	9	18	22	30	30	30	30
Max Tolerance Torque (kg.cm)	5	20	60	60	60	70	70	70	70

GMP36-555PM-2440-xxx Performance Parameters

Reduction Ratio	4	19	51	100	139	189	264	369	516
Length (mm)	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load Speed (rpm)	980	200	75	38	28	21	15	10	7.5
Rated Speed (rpm)	750	155	60	30	21	16	13	9.5	7
Rated Torque (kg.cm)	0.64	2.7	6	12	15	21	26	30	30
Max Tolerance Torque (kg.cm)	3.2	13	25	50	60	70	70	70	70

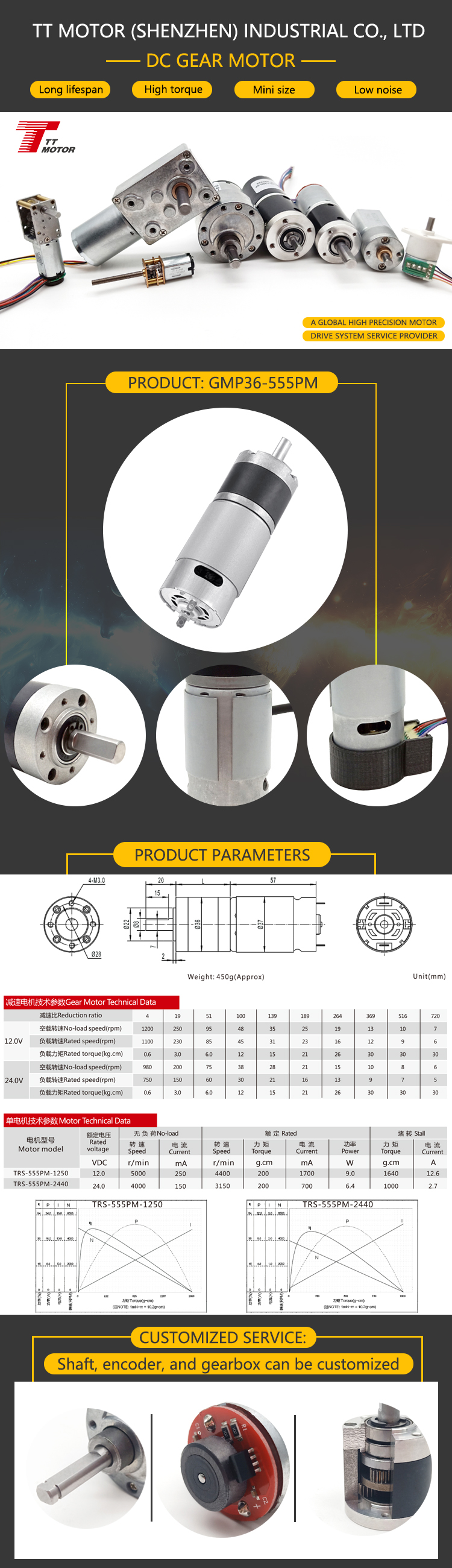

Product Dimensions

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Applications

Category	Application Scenarios
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Our Manufacturer

Specializing in micro motors, gear motors, and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, tools, and many others. Our products are dependable and long-lasting, backed by years of experience. We export 98% of our output worldwide.

By leveraging our hard-won reputation for honesty, dependability, and quality, we aim to continue as a pioneer in sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor, or an agent, please contact us. We look forward to being able to work together with you in the near future.

Our Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing

Shipping Time

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on destination country
Sea Shipping: Depends on destination country

Customer Feedback

Excellent quality, better price, good service, and on-time delivery.

Frequently Asked Questions

How to order?

Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

How about Sample order?

Sample is available for you. Please contact us for details. Once we charge you sample fee, please feel easy, it would be refunded when you place formal order.

Which shipping way is available?

DHL, UPS, FedEx, TNT, EMS, China Post, Sea are available. The other shipping ways are also available, please contact us if you need ship by another shipping way.

How long is the deliver [producing] and shipping?

Deliver time depends on the quantity you order. Usually it takes 15-25 working days.

My package has missing products. What can I do?

Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.

How to confirm the payment?

We accept payment by T/T, PayPal, and other payment ways can also be accepted. Please contact us before you pay by other payment ways. Also, a 30-50% deposit is available; the balance money should be paid before shipping.
