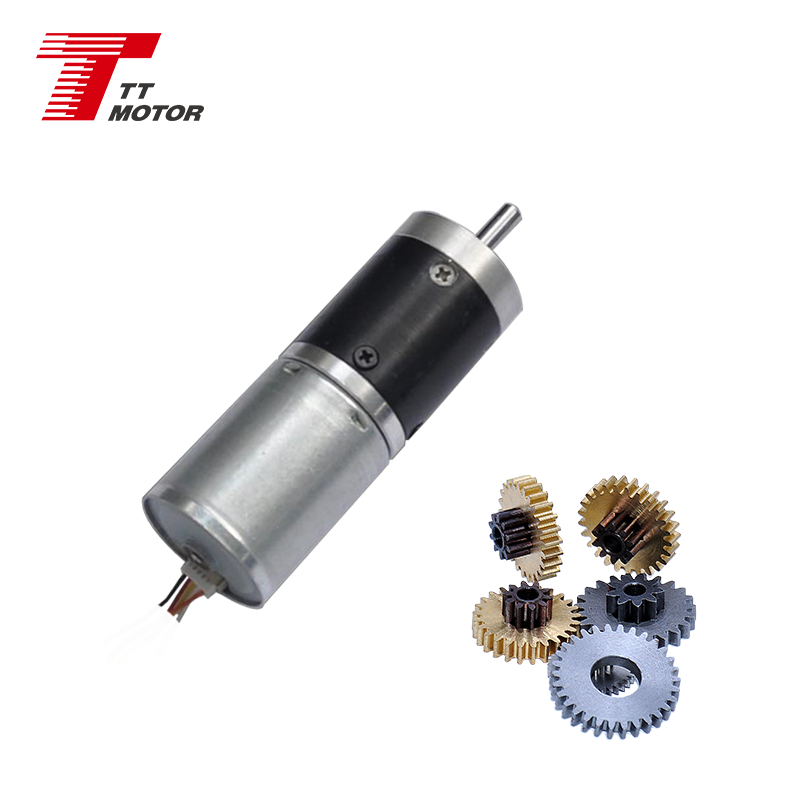

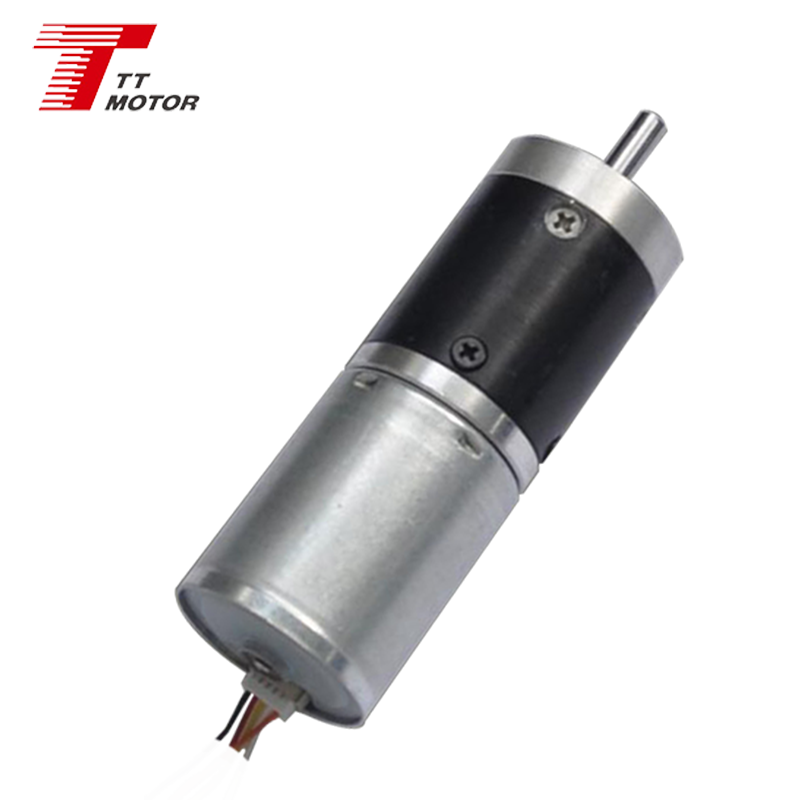

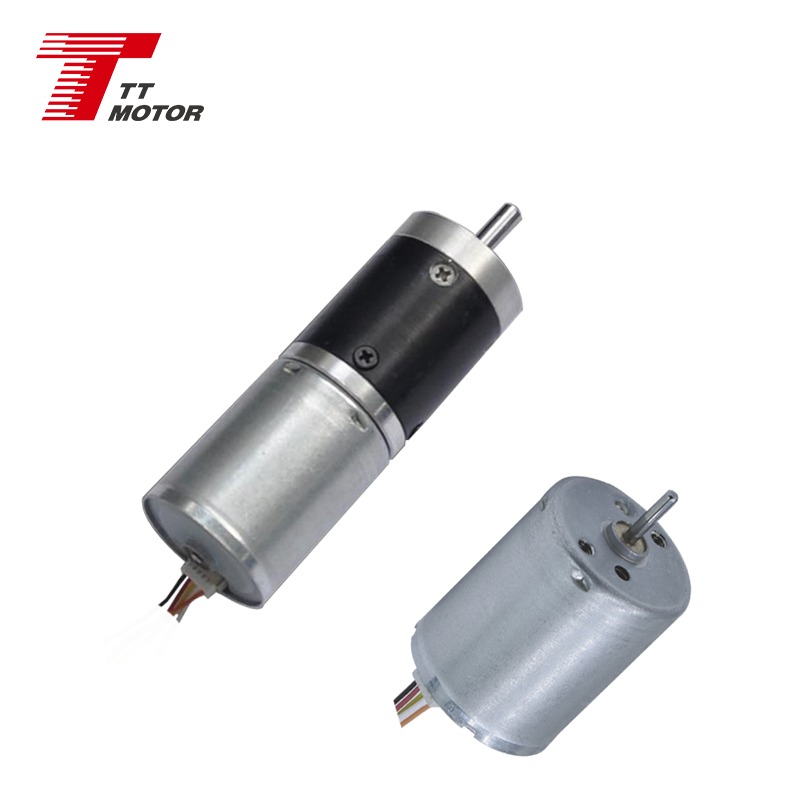

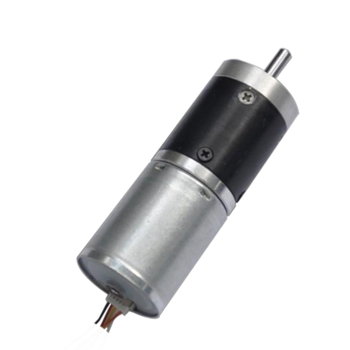

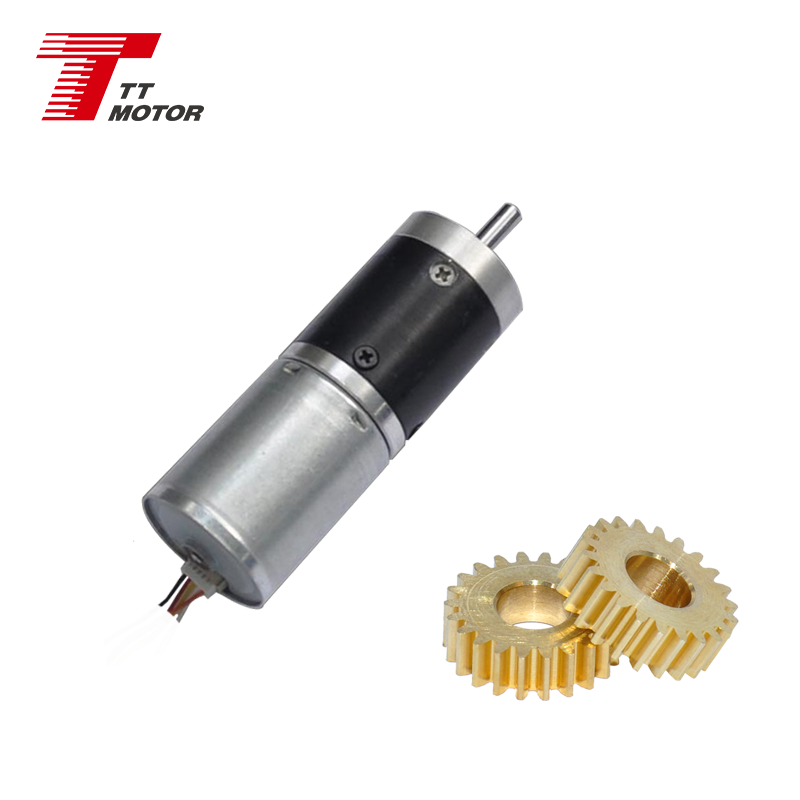

GMP24-TEC2430 24mm Geared Motor Electric 12v Brushless Motor

GMP24-TEC2430 24mm Geared Motor Electric 12V Brushless Motor

Product Description

24mm planetary gearbox plus 24mm brushless motor
Small size dc gear motor with low speed and big torque
24mm gear motor provide 0.5Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720

Motor Technical Specifications

Motor Model No.	Rated Voltage (VDC)	No-load Speed (r/min)	No-load Current (mA)	Rated Speed (r/min)	Rated Torque (g.cm)	Rated Current (mA)	Output Power (W)	Stall Torque (g.cm)	Stall Current (A)
TEC2430-1255	12	5500	90	4500	50	330	2.3	270	1.4
TEC2430-2455	24	5500	50	4500	50	180	2.3	270	0.75

Planetary Gearbox Parameter Options

Reduction Ratio	19	27	51	71	100	189	264	369	516
Length (mm)	58.8	58.8	63.8	63.8	63.8	68.8	68.8	68.8	68.8
No-load Speed (rpm)	280	195	105	75	55	29	21	15	11
Rated Speed (rpm)	250	180	95	68	48	25	18	13	9
Rated Torque (kg.cm)	0.6	1.0	1.4	2.0	2.8	5.0	5.0	5.0	5.0

Product Applications

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Other Application Fields

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Company Overview

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.

By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to working together with you in the near future.

Our Valued Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing is applied to guarantee product protection during transit.

Shipping Transit Times

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on destination country
Sea Freight: Depends on destination country

Customer Feedback

"Excellent quality, better price, good service, and on time delivery."

Frequently Asked Questions

Q How can I place an order?

Send us an inquiry → Receive our quotation → Negotiate order details → Confirm the sample → Sign contract / Pay deposit → Mass production → Cargo ready → Balance payment / Delivery → Further cooperation.

Q How can I request samples?

Samples are available for testing. Please reach out to us for detailed requests. Any sample fee charged will be fully refunded when you place your formal production order.

Q What shipping methods are available?

We support DHL, UPS, FedEx, TNT, EMS, China Post, and Sea Freight. Other shipping methods are also available; please reach out to us if you need shipping arranged via another method.

Q How long are the production and shipping timelines?

Production and delivery times depend on your ordered quantity. Typically, manufacturing takes between 15 to 25 working days.

Q My package is missing items. What should I do?

Please contact our support team. We will verify your order contents and check the package manifest to resolve the issue. We apologize for any inconvenience caused.

Q How do I confirm the payment?

We accept payments via T/T and PayPal. Other payment options can also be negotiated; please contact us before making payments through alternative routes. A 30% to 50% deposit is standard, with the remaining balance due before shipment.
