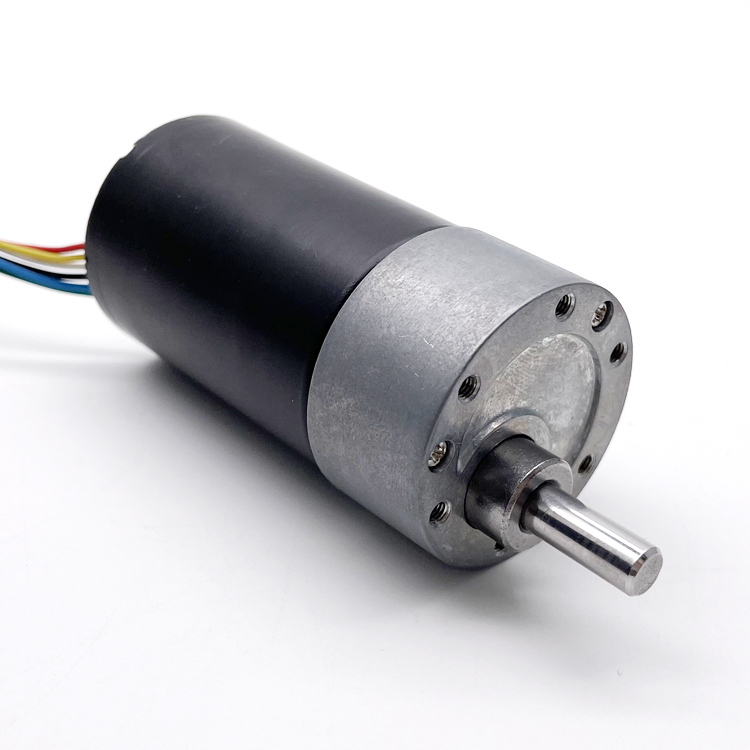

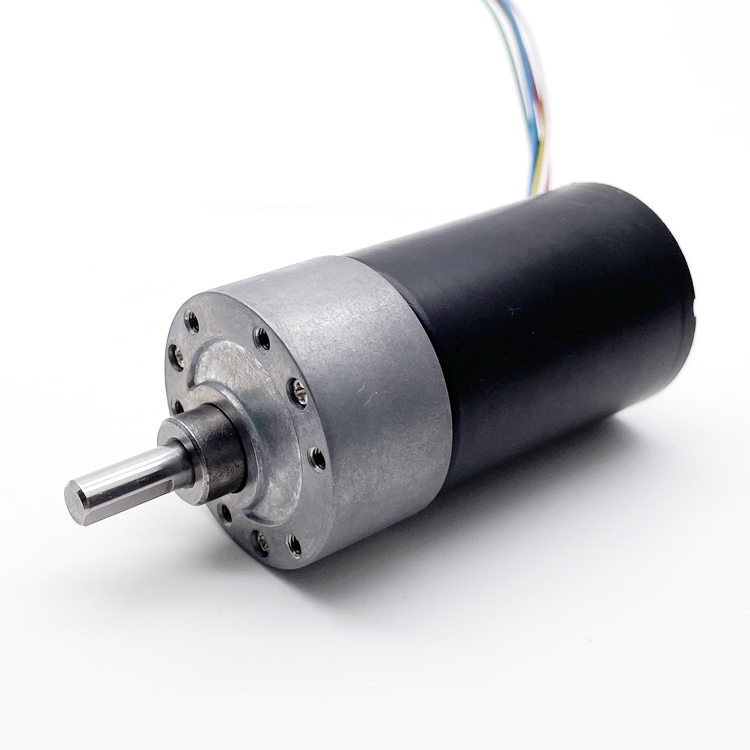

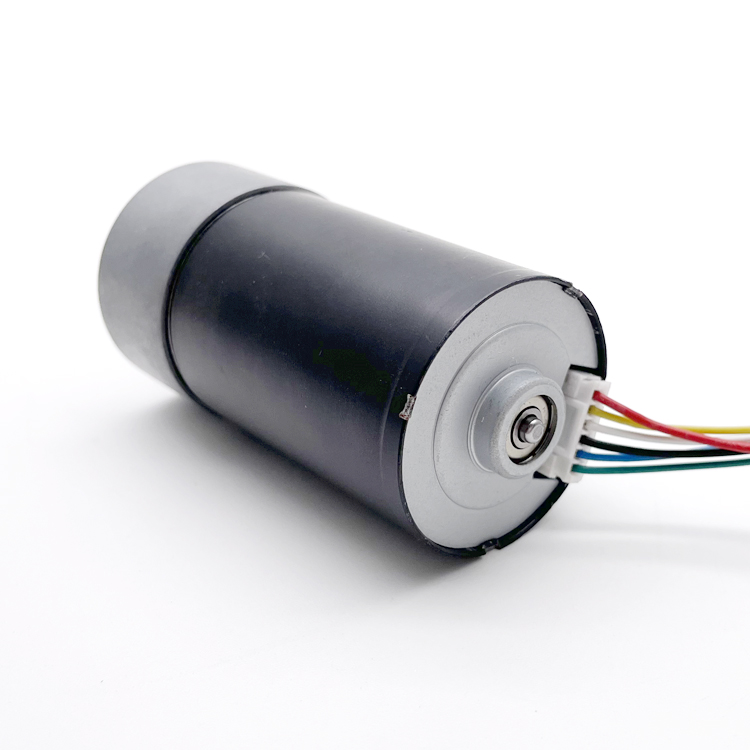

37mm Electric Bldc Motor 12v 24v Mini Dc Gear Motor

37mm Electric BLDC Motor 12v 24v Mini DC Gear Motor

Main Features

37mm spur gearbox plus TEC3650 & 3640 brushless motor.
Small size dc gear motor with low speed and big torque.
37mm gear motor provides 1.0Nm torque and high reliability.
Suitable for small diameter, low noise, and big torque applications.
Reduction ratios: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810.

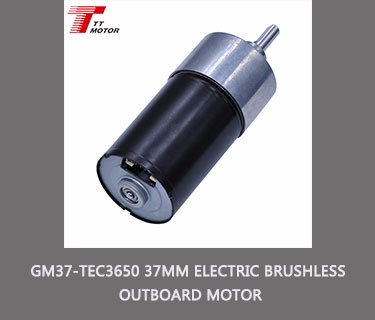

Model Specifications: GM37-TEC3650

Model	Rated Voltage	Rated Speed	No-load Speed	Rated Torque	Stall Torque	No-load Current	Rated Current	Stall Current	Output Power
TEC3650-2465	24VDC	5400 r/min	6500 r/min	200 g.cm	1150 g.cm	200mA	1000mA	2A	11.5W
TEC3650-2440	24VDC	3200 r/min	4000 r/min	200 g.cm	1000 g.cm	120mA	600mA	2A	6.6W
TEC3650-1245	12VDC	3500 r/min	4500 r/min	230 g.cm	820 g.cm	150mA	800mA	2.5A	8.3W

Gearbox Performance Table: GM37-TEC3650-2465-xx

Reduction Ratio	6	10	30	44	56	90	169	270	506
Length (mm)	19	19	21.5	24	24	24	26.5	26.5	29
No-load Speed (rpm)	1000	650	215	145	110	70	38	24	12.5
Rated Speed (rpm)	830	540	180	122	95	65	34	22	11
Rated Torque (kg.cm)	0.7	1.2	3.6	5.2	6.5	10	10	10	10
Max. Tolerance Torque (kg.cm)	2	5	15	15	15	15	15	15	15

Gearbox Performance Table: GM37-TEC3650-2440-xx

Reduction Ratio	6	10	30	44	56	90	169	270	506
Length (mm)	19	19	21.5	24	24	24	26.5	26.5	29
No-load Speed (rpm)	620	380	130	90	70	43	23	14.5	7.5
Rated Speed (rpm)	500	320	100	72	55	36	19	12.5	6.5
Rated Torque (kg.cm)	0.7	1.2	3.6	5.2	6.5	10	10	10	10
Max. Tolerance Torque (kg.cm)	2	5	15	15	15	15	15	15	15

Gearbox Performance Table: GM37-TEC3650-1245-xx

Reduction Ratio	6	10	30	44	56	90	169	270	506
Length (mm)	19	19	21.5	24	24	24	26.5	26.5	29
No-load Speed (rpm)	710	430	150	100	80	50	27	17	9
Rated Speed (rpm)	580	350	115	80	62	39	21	13	7
Rated Torque (kg.cm)	0.9	1.6	4.1	6.1	7.7	10	10	10	10
Max. Tolerance Torque (kg.cm)	3.5	5.7	15	15	15	15	15	15	15

Product Application

Our mini dc gear motors are widely applicable across various industries and smart devices, including: automatic door operators, automatic energy saving baths, electrical controlled valves, robots, grass cutters, electric curtains, cameras, medical services, oxygen machines, and more.

Business Machines

ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.

Food and Beverage

Beverage Dispensing, Hand Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Ice Makers.

Home Tech & Entertainment

Home Ventilation, Air Purifiers, Range Hoods, Washers, Gaming Machines, RC Toys.

Lawn, Garden & Tools

Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers, Drills, Sanders, Grinders.

Certifications & Quality Assurance

We implement strict quality standards throughout our manufacturing processes: ISO9001, SGS, National high-tech enterprises, etc.

Manufacturing Excellence

We have been specializing in micro motors, gear motors, and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances, and tools. Engineered to be dependable and long-lasting, our products are backed by years of industrial experience. We export 98% of our output worldwide.

By leveraging our hard-won reputation for honesty, dependability, and quality, we aim to continue as a pioneer in overseas sales by seeking global partners. Whether you are an end-user of micro-motors, a distributor, or an agent, we look forward to working together with you.

Our Valued Customers

Trusted by global brands and partners worldwide: NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard industrial protective packaging to ensure your shipment arrives securely.

Shipping Timeline

DHL: 3-5 working days

UPS: 5-7 working days

TNT: 5-7 working days

FedEx: 7-9 working days

EMS: 12-15 working days

China Post & Sea: Depends on destination

Customer Testimonials

"Excellent quality, better price, good service, and on-time delivery."

Frequently Asked Questions (FAQ)

How do I place an order for the gear motors?

Send us your inquiry details → Receive our formal quotation → Negotiate specific product requirements → Confirm samples → Sign contract and deposit → Mass production begins → Cargo ready → Balance payment & delivery → Long-term cooperation.

Can I request samples before placing a formal order?

Yes, sample orders are available. Once sample fees are charged, please be assured that the cost will be fully refunded when you place the formal mass production order.

Which shipping options are available?

We support shipping via DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight. Other shipping options can also be customized upon request.

What is the typical production and delivery timeframe?

Delivery time depends on your specific order quantity. Typically, the production cycle ranges between 15 and 25 working days.

How is the payment confirmed, and what are the terms?

We accept payments via T/T and PayPal. Other payment options are negotiable. We offer a 30% to 50% deposit option, with the remaining balance due prior to shipment.

What should I do if my package has missing products?

Please contact our support team immediately. We will confirm your order details and check the package manifest. We apologize for any inconvenience and will resolve the issue promptly.
