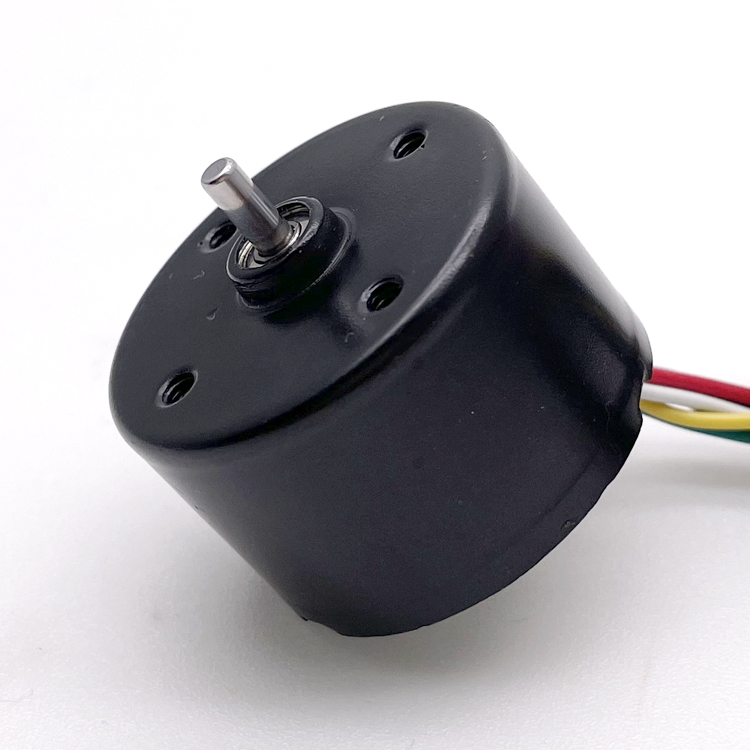

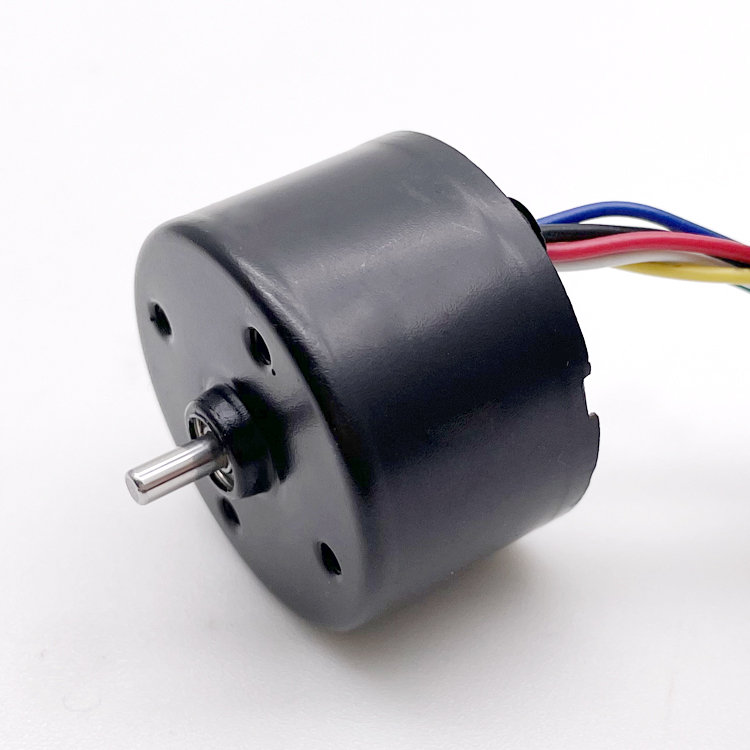

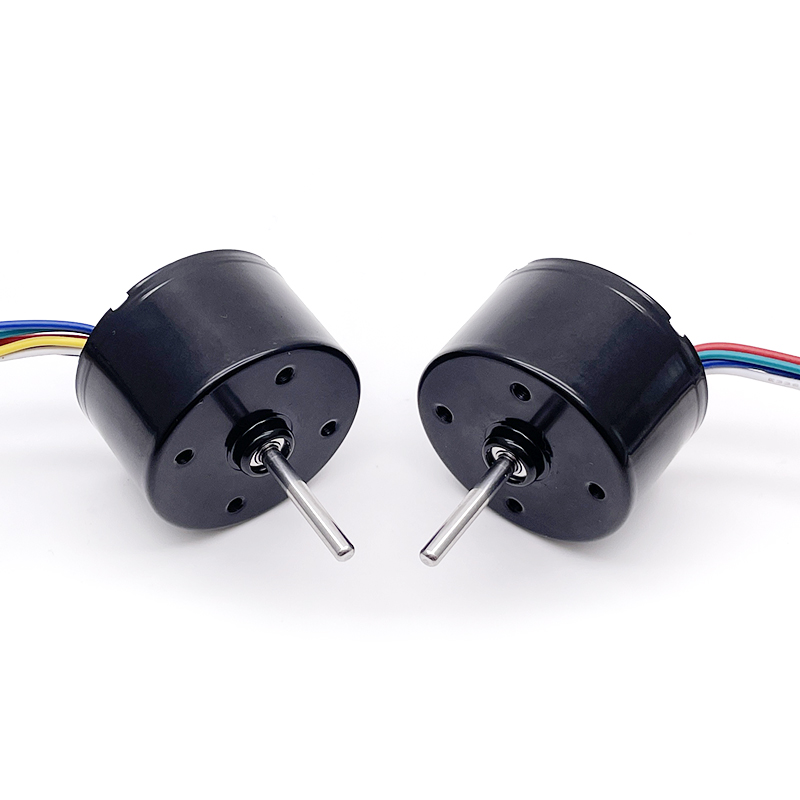

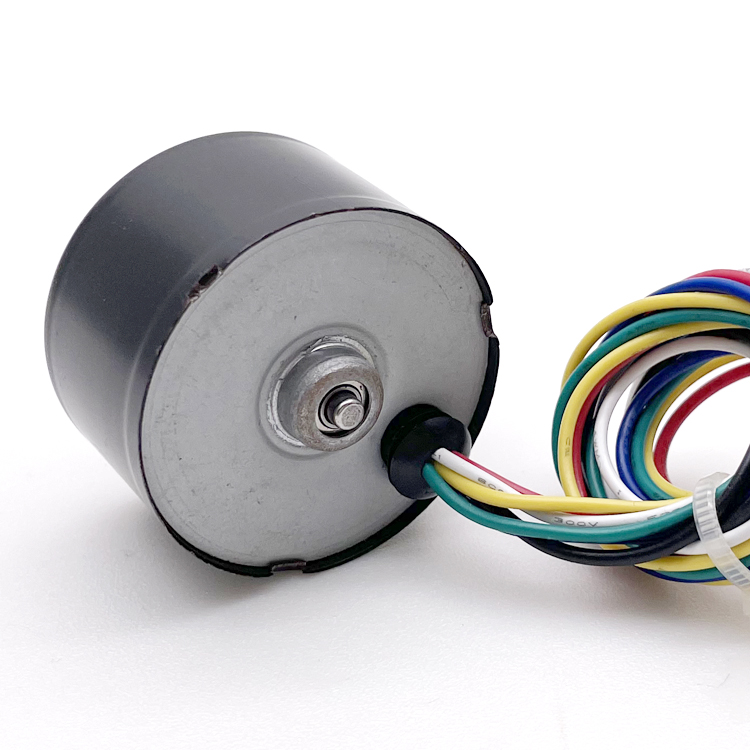

12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor

Main Features

36mm brushless motor
Low noise, long life. Built-in drive. Power on, then work
Reverse rotation and Brake control
PWM Speed control and FG signal feedback
Can be available with planetary gearbox

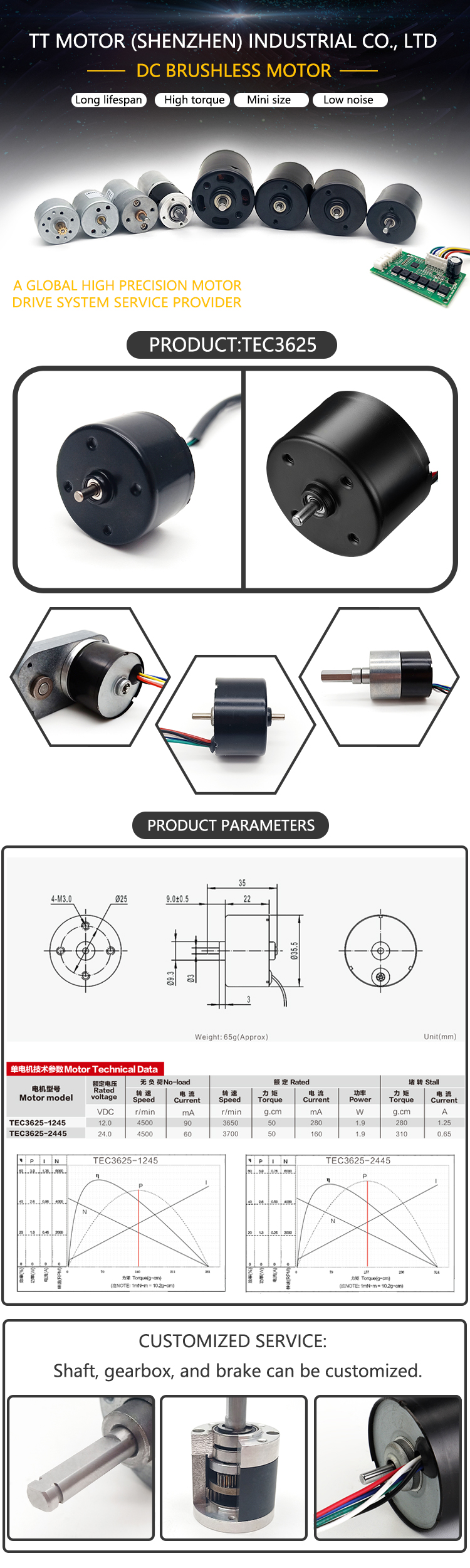

Model: motor TEC3625 Specifications

Model	Voltage / Speed / Power / Torque / Current Parameters
TFC3625-0630	Rated voltage: 6VDC \| Rated speed: 2100r/min \| Output power: 2.2W No-load speed: 3000r/min \| Rated torque: 100g.cm \| Stall torque: 340g.cm No-load current: 210mA \| Rated current: 400mA \| Stall current: 1.8A
TFC3625-1255	Rated voltage: 12VDC \| Rated speed: 4600r/min \| Output power: 4.6W No-load speed: 5500r/min \| Rated torque: 84g.cm \| Stall torque: 140g.cm No-load current: 180mA \| Rated current: 800mA \| Stall current: 1.6A
TFC3625-2480	Rated voltage: 24VDC \| Rated speed: 5900r/min \| Output power: 16.5W No-load speed: 8000r/min \| Rated torque: 270g.cm \| Stall torque: 680g.cm No-load current: 160mA \| Rated current: 900mA \| Stall current: 2.0A

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Others Application

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.

Our Company

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

Our Customers

NIKE, FLEXTRONICS, STANLEY, etc.

Packing & Delivery

Standard packing

Shipping Time

DHL: 3-5 working days

UPS: 5-7 working days

TNT: 5-7 working days

FedEx: 7-9 working days

EMS: 12-15 working days

China Post: Depends on ship to which country

Sea: Depends on ship to which country

Our Customer Feedback

Excellent quality, better price, good service, and on time delivery.

Frequently Asked Questions

How to order?

Send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation

How about Sample order?

Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Which shipping way is available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipping are available. Other shipping ways are also available; please contact us if you need to ship by another method.

How long is the deliver (producing) and shipping?

Deliver time depends on the quantity you order. usually it takes 15-25 working days.

My package has missing products. What can I do?

Please contact our support team and we will confirm your order with the package contents. We apologize for any inconveniences.

How to confirm the payment?

We accept payment by T/T, PayPal, and other payment methods. Please contact us before you pay by other methods. A 30-50% deposit is available, with the balance to be paid before shipping.
